DIGITAL STROBOSCOPE
    Model : DS-3200 (60.0 to 30,000 RPM/FPM)
    Model : DS-2200 (60.0 to 18,000 RPM/FPM)
    Model : DS-1000 (60 to 10,000 RPM/FPM)
                        (Without Display, Rotary adjustment)
                   (AC100V, AC110V, AC220V, AC240V)
        LED STROBOSCOPE DS-9000
                    (40.0 to 99,999 RPM/FPM)
                  (Adaptor AC100-240V / DC5V 3A)
photo DS-3200

 Keyboard Operating, Wide Range, High Accuracy.
 A complete digital design for speed measuring,
    general industrial maintenance, quality control,
    production, laboratories and for schools and
    colleges for demonstrating strobe action.
 Three complete setup memory.
 Special function "¡Ñ2" and "¡Ò2"
    for check the stop motion is actual speed.
front ds3200
Actual Speed RPM Stroboscope RPM/FPM Multiple Stop Motion Images
3,000 12,000 4 4
3,000 9,000 3 3
3,000 6,000 2 2
3,000 3,000 1 1
3,000 1,500 1/2 1
3,000 1,000 1/3 1

¡@

back ds3200
DS-3200

DS-1000

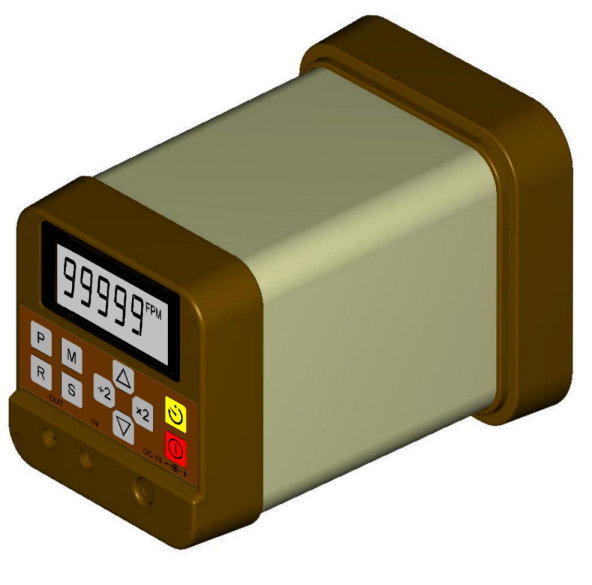

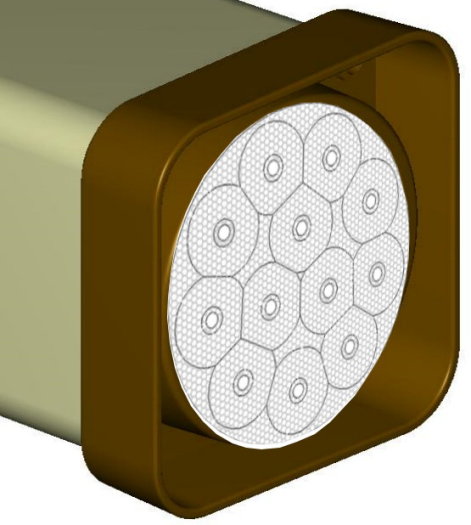

DS-9000

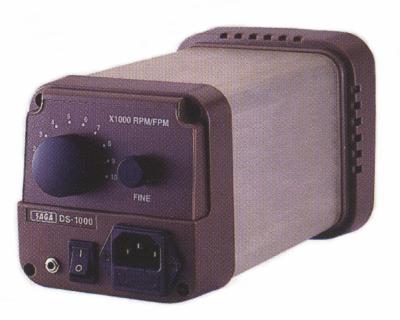

     DS-1000
Rotary RPM/FPM adjustment.
Fine adjustment.
External trigger.

SPECIFICATION

Model

DS-3200

DS-2200

DS-1000

Setup Range

60.0 - 30,000 rpm

60.0 - 18,000 rpm

60.0 - 10,000 rpm

  Resolution

0.1 rpm/fpm below 2,000 rpm
1 rpm/fpm above 2,000 rpm



Display

5 digits LED, 10mm High



Setup Accuracy

¡Ó0.01%



Temp. Drift

¡Ó0.01%



Lamp

 Xenon flash lamp


Special Function

Multiplier (¡Ñ2) flashes, Divider (¡Ò2) flashes
Three complete setup memory (M1, M2, M3)
Four speeds (Fast, Middle, Slow, Fine) adjustment for quick setting stability.

Rotary RPM adjustment.
Fine adjustment.
External trigger.

 Power Supply

AC 110V or 220V¡Ó10%, 50/60 Hz (Please specify voltage when placing orders.)

Power Consumption

Approximately 25 watts. (Full range)

Operating Temp./Humidity

 0¢J to 50¢J (32¢K to 122¢K), Below 85% RH.

Dimension

115 x 115 x 200 mm. without handle (removable)

Weight

Approximately 1.5Kgs

Standard Accessories

AC power cord, Xenon Lamp, Operation Manual

Optional Accessories

Carrying case (DS-CASE)
Xenon Lamp DS-FT-01  (DS-FT-03 for DS-1000)

* Appearance and specifications listed in this brochure are subject to change without notice.
